Memory-dependent derivative approach on magneto-thermoelastic transversely isotropic medium with two temperatures

Abstract

The aim of the present investigation is to examine the memory-dependent derivatives (MDD) in 2D transversely isotropic homogeneous magneto thermoelastic medium with two temperatures. The problem is solved using Laplace transforms and Fourier transform technique. In order to estimate the nature of the displacements, stresses and temperature distributions in the physical domain, an efficient approximate numerical inverse Fourier and Laplace transform technique is adopted. The distribution of displacements, temperature and stresses in the homogeneous medium in the context of generalized thermoelasticity using LS (Lord-Shulman) theory is discussed and obtained in analytical form. The effect of memory-dependent derivatives is represented graphically.

Introduction

Magneto-thermoelasticity deals with the relations of the magnetic field, strain and temperature. It has wide applications such as geophysics, examining the effects of the earth's magnetic field on seismic waves, emission of electromagnetic radiations from nuclear devices and damping of acoustic waves in a magnetic field. In recent years, inspired by the successful applications of fractional calculus in diverse areas of engineering and physics, generalized thermoelasticity (GTE) models have been further comprehensive into temporal fractional ones to express memory dependence in heat conductive sense.

The MDD is defined in an integral form of a common derivative with a kernel function. The kernels in physical laws are important in many models that describe physical phenomena including the memory effect. Wang and Li (2011) introduced the concept of a MDD. Yu et al. (2014) introduced the MDD as an alternative of fractional calculus into the rate of the heat flux in the Lord-Shulman (LS) theory of generalized thermoelasticity to represent memory dependence and recognized as a memory-dependent LS model. This innovative model might be useful to the fractional models owing to the following arguments. First, the new model is unique in its form, while the fractional-order models have different modifications (Riemann-Liouville, Caputo and other models). Second, the physical meaning of the new model is clearer due to the essence of the MDD definition. Third, the new model is depicted by integer-order differentials and integrals, which is more convenient in numerical calculation as compared to the fractional models. Finally, the kernel function and time delay of the MDD can be arbitrarily chosen; thus, the model is more flexible in applications than the fractional models, in which the significant variable is the fractional-order parameter (2016). Ezzat et al. (2014, 2015, 2016) discussed some solutions of one-dimensional problems obtained with the use of the memory-dependent LS model of generalized thermoelasticity.

Ezzat et al. (2016) discussed a generalized model of two-temperature thermoelasticity theory with time delay and Kernel function and Taylor theorem with memory-dependent derivatives involving two temperatures. Ezzat and El-Bary (2017) applied the magneto-thermoelastic model to a one-dimensional thermal shock problem of functionally graded half space based on the MDD. Ezzat et al. (2017) proposed a mathematical model of electro-thermoelasticity for heat conduction with a MDD. Aldawody et al. (2018) proposed a new mathematical model of generalized magneto-thermo-viscoelasticity theories with MDD of dual-phase-lag heat conduction law. Despite this, several researchers worked on different theory of thermoelasticity such as Marin (1995, 2010), Mahmoud (2012), Riaz et al. (2019), Marin et al. (2013, 2016), Kumar and Chawla (2013), Sharma and Marin (2014), Kumar and Devi (2016), Bijarnia and Singh (2016), Othman et al. (2017), Ezzat and El-Barrry (2017), Bhatti et al. (2019a, b, 2020), Youssef (2013, 2016), Lata et al. (2016), Othman and Marin (2017), Lata and Kaur (2019c, d, e) and Zhang et al. (2020).

In spite of these, not much work has been carried out in memory-dependent derivative approach for transversely isotropic magneto-thermoelastic medium with two temperatures. In this article, the memory-dependent derivatives (MDD) theory is revisited and it is adopted to analyse the effect of MDD in a homogeneous transversely isotropic magneto-thermoelastic solid. The problem is solved using Laplace transforms and Fourier transform technique. The components of displacement, conductive temperature and stress components in the homogeneous medium in the context of generalized thermoelasticity using LS (Lord-Shulman) theory is discussed and obtained in analytical form. The effect of memory-dependent derivatives is represented graphically.

Basic equations

Following Kumar et al. (2016), the simplified Maxwell’s linear equation of electrodynamics for a slowly moving and perfectly conducting elastic solid are

$$ \mathit{\operatorname{curl}}\ \overrightarrow{h}=\overrightarrow{j}+{\varepsilon}_0\frac{\partial \overrightarrow{E}}{\partial t}, $$

(1)

$$ \mathit{\operatorname{curl}}\ \overrightarrow{E}=-{\mu}_0\frac{\partial \overrightarrow{h}}{\partial t}, $$

(2)

$$ \overrightarrow{E}=-{\mu}_0\left(\frac{\partial \overrightarrow{u}}{\partial t}+{\overrightarrow{H}}_0\right), $$

(3)

$$ \mathit{\operatorname{div}}\ \overrightarrow{h}=0. $$

(4)

Maxwell stress components following Kumar et al. (2016) are given by

$$ {T}_{ij}={\mu}_0\left({H}_i{h}_j+{H}_j{h}_i-{H}_k{h}_k{\delta}_{ij}\right). $$

(5)

Equation of motion for a transversely isotropic thermoelastic medium and taking into account Lorentz force

$$ {t}_{ij,j}+{F}_i=\rho {\ddot{u}}_i, $$

(6)

where${F}_i={\mu}_0{\left(\overrightarrow{j}\times {\overrightarrow{H}}_0\right)}_i$ are the components of Lorentz force. The constitutive relations for a transversely isotropic thermoelastic medium are given by

$$ {t}_{ij}={C}_{ij kl}{e}_{kl}-{\beta}_{ij}T. $$

(7)

and

$$ {\beta}_{ij}={C}_{ij kl}{\alpha}_{ij}, $$

(8)

$$ {e}_{ij}=\frac{1}{2}\left({u}_{i,j}+{u}_{j,i}\right),i,j=1,2,3. $$

(9)

$$ T=\varphi -{a}_{ij}{\varphi}_{, ij}, $$

(10)

α_ij = α_iδ_ij, β_ij = β_iδ_ij, K_ij = K_iδ_ij, i is not summed.

Here, C_ijkl(C_ijkl = C_klij = C_jikl = C_ijlk) are elastic parameters and having symmetry (C_ijkl = C_klij = C_jikl = C_ijlk). The basis of these symmetries of C_ijkl is due to the following:

• i. The stress tensor is symmetric, which is only possible if (C_ijkl = C_jikl)

• ii. If a strain energy density exists for the material, the elastic stiffness tensor must satisfy C_ijkl = C_klij

• iii. From stress tensor and elastic stiffness tensor, symmetries infer (C_ijkl = C_ijlk) and C_ijkl = C_klij = C_jikl = C_ijlk

Following Bachher (2019), heat conduction equation for an anisotropic media is given by

$$ {K}_{ij}{\varphi}_{, ij}=\left(1+\chi {D}_{\chi}\right)\left({\rho C}_E\dot{T}+{\beta}_{ij}{T}_0{\dot{e}}_{ij}\right), $$

(11)

For the differentiable function f(t), Wang and Li (2011) introduced the first-order MDD with respect to the time delay χ > 0 for a fixed time t:

$$ {D}_{\chi }f(t)=\frac{1}{\chi }{\int}_{t-\chi}^tK\left(t-\xi \right){f}^{\prime}\left(\xi \right) d\xi, $$

(12)

The choice of the kernel function K(t − ξ) and the time delay parameter χ is determined by the material properties. The kernel function K(t − ξ) is differentiable with respect to the variables t and ξ. The motivation for such a new definition is that it provides more insight into the memory effect (the instantaneous change rate depends on the past state) and also better physical meaning, which might be superior to the fractional models. This kind of the definition can reflect the memory effect on the delay interval [t − χ, t], which varies with time. They also suggested that the kernel form K(t − ξ) can also be chosen freely, e.g. as 1, ξ − t + 1, [(ξ − t)/χ + 1]² and [(ξ − t)/χ + 1]^1/4. The kernel function can be understood as the degree of the past effect on the present. Therefore, the forms [(ξ − t)/χ + 1]² and [(ξ − t)/χ + 1]^1/4 may be more practical because they are monotonic functions: K(t − ξ) = 0 for the past time t − χ and K(t − ξ) = 1 for the present time t, i.e. it is easily concluded that the kernel function K(t − ξ) is a monotonic function increasing from zero to unity with time. The right side of the MDD definition given above can be understood as a mean value of f (ξ) on the past interval [t − χ, t] with different weights. Generally, from the viewpoint of applications, the function K(t − ξ) should satisfy the inequality 0 ≤ K(t − ξ) < 1 for ξ ∈ [t − χ, t]. Therefore, the magnitude of the MDD D_χ f(t) is usually smaller than that of the common derivative f (t). It can also be noted that the common derivative d/dt is the limit of D_χ as κ → 0. Following Ezzat et al. (2014, 2015, 2016), the kernel function K(t − ξ) is taken here in the form

$$ K\left(t-\xi \right)=1-\frac{2b}{\chi}\left(t-\xi \right)\frac{a^2}{\chi^2}{\left(t-\xi \right)}^2=\left\{\begin{array}{c}1\\ {}1+\left(\xi -t\right)/\chi \\ {}\xi -t+1\\ {}{\left[1+\left(\xi -t\right)/\chi \right]}^2\end{array}\right.{\displaystyle \begin{array}{c}a=0,b=0\\ {}a=0,b=1/2\\ {}a=0,b=1/\chi \\ {}a=1,b=1\end{array}} $$

(13)

where a and b are constants. It should be also mentioned that the kernel in the fractional sense is singular, while that in the MDD model is non-singular. The kernel can be now simply considered a memory manager. The comma is further used to indicate the derivative with respect to the space variable, and the superimposed dot represents the time derivative.

Method and solution of the problem

We consider a homogeneous transversely isotropic magneto-thermoelastic medium initially at a uniform temperature T₀, permeated by an initial magnetic field ${\overrightarrow{H}}_0=\left(0,{H}_0,0\right)$ acting along the y-axis. The rectangular Cartesian co-ordinate system (x, y, z) having origin on the surface (z = 0) with z-axis pointing vertically into the medium is introduced. From the generalized Ohm’s law

$$ \overrightarrow{E}=-{\mu}_0{H}_0\left(-\ddot{w},0,\ddot{u}\right) $$

(14)

$$ \overrightarrow{j}=\left(-\frac{\partial Hy}{\partial z}-{\varepsilon}_0{\dot{E}}_x,0,-\frac{\partial Hy}{\partial x}-{\varepsilon}_0{\dot{E}}_z\right). $$

(15)

$$ \overrightarrow{F}=\left({\mu}_0{H}_0^2\left(\frac{\partial e}{\partial x}-{\varepsilon}_0{\mu}_0\ddot{u}\right),0,{\mu}_0{H}_0^2\left(\frac{\partial e}{\partial z}-{\varepsilon}_0{\mu}_0\ddot{w}\right)\right) $$

(16)

In addition, we consider the plane such that all particles on a line parallel to y-axis are equally displaced, so that the equations of displacement vector (u, v, w) and conductive temperature φ for transversely isotropic thermoelastic solid are given by

$$ u=u\left(x,z,t\right),v=0,w=w\left(x,z,t\right)\ and\ \varphi =\varphi \left(x,z,t\right). $$

(17)

Now, using the transformation on Eqs. (5) and (12) following Slaughter (2002) with the aid of (16) and (17) yields

$$ {C}_{11}\frac{\partial^2u}{\partial {x}^2}+{C}_{13}\frac{\partial^2w}{\partial x\partial z}+{C}_{44}\left(\frac{\partial^2u}{\partial {z}^2}+\frac{\partial^2w}{\partial x\partial z}\right)-{\beta}_1\frac{\partial }{\partial x}\left\{\varphi -\left({a}_1\frac{\partial^2\varphi }{\partial {x}^2}+{a}_3\frac{\partial^2\varphi }{\partial {z}^2}\right)\right\}+{\mu}_0{H}_0^2\left(\frac{\partial e}{\partial x}-{\varepsilon}_0{\mu}_0\ddot{u}\right)=\rho \frac{\partial^2u}{\partial {t}^2}, $$

(18)

$$ \left({C}_{13}+{C}_{44}\right)\frac{\partial^2u}{\partial x\partial z}+{C}_{44}\frac{\partial^2w}{\partial {x}^2}+{C}_{33}\frac{\partial^2w}{\partial {z}^2}-{\beta}_3\frac{\partial }{\partial z}\left\{\varphi -\left({a}_1\frac{\partial^2\varphi }{\partial {x}^2}+{a}_3\frac{\partial^2\varphi }{\partial {z}^2}\right)\right\}+{\mu}_0{H}_0^2\left(\frac{\partial e}{\partial z}-{\varepsilon}_0{\mu}_0\ddot{w}\right)=\rho \frac{\partial^2w}{\partial {t}^2}, $$

(19)

$$ {K}_1\frac{\partial^2\varphi }{\partial {x}^2}+{K}_3\frac{\partial^2\varphi }{{\partial z}^2}=\left(1+\chi {D}_{\chi}\right)\left[{T}_0\left({\beta}_1\frac{\partial \dot{u}}{\partial x}+{\beta}_3\frac{\partial \dot{w}}{\partial z}\right)+\rho {C}_E\left\{\dot{\varphi}-{a}_1\frac{\partial^2\dot{\varphi}}{{\partial x}^2}-{a}_3\frac{\partial^2\dot{\varphi}}{{\partial z}^2}\right\}\right] $$

(20)

where from (7)

$$ {\displaystyle \begin{array}{c}{\beta}_1=\left({C}_{11}+{C}_{12}\right){\alpha}_1+{C}_{13}{\alpha}_{3,}\\ {}{\beta}_3=2{C}_{13}{\alpha}_1+{C}_{33}{\alpha}_{3,}\\ {}e=\frac{\partial u}{\partial x}+\frac{\partial w}{\partial z}\end{array}} $$

And stress strain relations given by (5) after using (9) and (17) becomes

$$ {t}_{11}\left(\mathrm{x},\mathrm{z},\mathrm{t}\right)={C}_{11}\frac{\partial u}{\partial x}+{C}_{13}\frac{\partial w}{\partial z}-{\beta}_1\left\{\varphi -\left({a}_1\frac{\partial^2\varphi }{{\partial x}^2}+{a}_3\frac{\partial^2\varphi }{{\partial z}^2}\right)\right\}, $$

(21)

$$ {t}_{22}\left(\mathrm{x},\mathrm{z},\mathrm{t}\right)={c}_{12}\frac{\partial u}{\partial x}+{c}_{13}\frac{\partial w}{\partial z}-{\beta}_1\left\{\varphi -\left({a}_1\frac{\partial^2\varphi }{{\partial x}^2}+{a}_3\frac{\partial^2\varphi }{{\partial z}^2}\right)\right\}, $$

(22)

$$ {t}_{33}\left(\mathrm{x},\mathrm{z},\mathrm{t}\right)={C}_{13}\frac{\partial u}{\partial x}+{C}_{33}\frac{\partial w}{\partial z}-{\beta}_3\left\{\varphi -\left({a}_1\frac{\partial^2\varphi }{{\partial x}^2}+{a}_3\frac{\partial^2\varphi }{{\partial z}^2}\right)\right\}, $$

(23)

$$ {t}_{13}\left(\mathrm{x},\mathrm{z},\mathrm{t}\right)={C}_{44}\left(\frac{\partial u}{\partial z}+\frac{\partial w}{\partial x}\right), $$

(24)

$$ {t}_{12}\left(\mathrm{x},\mathrm{z},\mathrm{t}\right)={t}_{23}\left(\mathrm{x},\mathrm{z},\mathrm{t}\right)=0. $$

(25)

We assume that medium is initially at rest. The undisturbed state is maintained at reference temperature T₀. Then, we have the initial and regularity conditions given by

$$ u\left(x,z,0\right)=0=\dot{u}\left(x,z,0\right),w\left(x,z,0\right)=0=\dot{w}\left(x,z,0\right),\varphi \left(x,z,0\right)=0=\dot{\varphi}\left(x,z,0\right)\ for\ z\ge 0,-\infty <x<\infty, \kern0.5em u\left(x,z,t\right)=w\left(x,z,t\right)=\varphi \left(x,z,t\right)=0\ \mathrm{for}\ t>0\ \mathrm{when}\ z\to \infty . $$

To simplify the solution, the following dimensionless quantities are used:

$$ {\displaystyle \begin{array}{c}\left({x}^{\prime },{z}^{\prime}\right)=\frac{1}{L}\left(x,z\right),\left({u}^{\prime },{w}^{\prime}\right)=\frac{{\rho c}_1^2}{L{\beta}_1{T}_0}\left(u,w\right),\left({a}_1^{\prime },{a}_3^{\prime}\right)=\frac{1}{L^2}\left({a}_1,{a}_3\right),{\rho C}_1^2={C}_{11}\\ {}{\varphi}^{\prime }=\frac{\varphi }{T_0},\left({t}_{11}^{\prime },{t}_{13}^{\prime },{t}_{33}^{\prime}\right)=\frac{1}{\beta_1{T}_0}\left({t}_{11},{t}_{13},{t}_{33}\right),{t}^{\prime }=\frac{C_1}{L}t.\end{array}} $$

(26)

Making use of dimensionless quantities defined by (26) in Eqs. (18)–(20), after suppressing the primes, yields

$$ \left(1+{\delta}_5\right)\frac{\partial^2u}{\partial {x}^2}+\left({\delta}_4+{\delta}_5\right)\frac{\partial^2w}{\partial x\partial z}+{\delta}_2\left(\frac{\partial^2u}{\partial {z}^2}+\frac{\partial^2w}{\partial x\partial z}\right)-\frac{\partial }{\partial x}\left\{\varphi -\left({a}_1\frac{\partial^2\varphi }{\partial {x}^2}+{a}_3\frac{\partial^2\varphi }{\partial {z}^2}\right)\right\}=\left(\frac{\varepsilon_0{\mu}_0^2{H}_0^2}{\rho }+1\right)\frac{\partial^2u}{\partial {t}^2}, $$

(27)

$$ \left({\delta}_1+{\delta}_5\right)\frac{\partial^2u}{\partial x\partial z}+{\delta}_2\frac{\partial^2w}{\partial {x}^2}+\left({\delta}_3+{\delta}_5\right)\frac{\partial^2w}{\partial {z}^2}-\frac{\beta_3}{\beta_1}\frac{\partial }{\partial z}\left\{\varphi -\left({a}_1\frac{\partial^2\varphi }{\partial {x}^2}+{a}_3\frac{\partial^2\varphi }{\partial {z}^2}\right)\right\}=\left(\frac{\varepsilon_0{\mu}_0^2{H}_0^2}{\rho }+1\right)\frac{\partial^2w}{\partial {t}^2}, $$

(28)

$$ {K}_1\frac{\partial^2\varphi }{\partial {x}^2}+{K}_3\frac{\partial^2\varphi }{{\partial z}^2}=\left(1+\chi {D}_{\chi}\right)\left[\frac{\partial }{\partial t}\left({\delta}_6\frac{\partial u}{\partial x}+{\delta}_8\frac{\partial w}{\partial z}\right)+{\delta}_7\frac{\partial }{\partial t}\left\{\varphi -{a}_1\frac{\partial^2\varphi }{\partial {x}^2}-{a}_3\frac{\partial^2\varphi }{{\partial z}^2}\right\}\right], $$

(29)

where

$$ {\delta}_1=\frac{C_{13}+{C}_{44}}{C_{11}},{\delta}_2=\frac{C_{44}}{C_{11}},{\delta}_3=\frac{C_{33}}{C_{11}},{\delta}_4=\frac{C_{13}}{C_{11}},{\delta}_5=\frac{\beta_1{T}_0{\mu}_0{H}_0^2}{L{\rho}^2{C}_1^4},{\delta}_6=\frac{{L\beta}_1^2{T}_0}{\rho {C}_1},{\delta}_8=\frac{\mathrm{L}{\beta}_1{\beta}_3{T}_0}{\rho {C}_1},{\delta}_7=\rho {C}_E{C}_1L. $$

Laplace transforms is defined by

$$ \mathcal{L}\left[f\left(x,z,t\right)\right]=\underset{0}{\overset{\infty }{\int }}{e}^{- st}f\left(x,z,t\right) dt=\overset{\sim }{f}\left(x,z,s\right). $$

(30)

with basic properties

$$ L\left(\frac{\partial f}{\partial t}\right)=s\overline{f}\left(x,z,s\right)-f\left(x,z,0\right), $$

(31)

$$ L\left(\frac{\partial^2f}{\partial {t}^2}\right)={s}^2\overline{f}\left(x,z,s\right)- sf\left(x,z,0\right)-{\left(\frac{\partial f}{\partial t}\right)}_{t=0}. $$

(32)

Fourier transforms of a function f with respect to variable x with ξ as a Fourier transform variable is defined by

$$ \mathcal{F}\left\{\overset{\sim }{f}\left(x,z,s\right)\right\}=\hat{f}\left(\xi, z,s\right)=\underset{-\infty }{\overset{\infty }{\int }}\overset{\sim }{f}\left(x,z,s\right){e}^{i\xi x} dx. $$

(33)

With basic properties: if f(x) and first (n − 1) derivatives of f(x) vanish identically as x→ ±  ∞ , then

$$ \mathcal{F}\left\{\frac{\partial^n\overset{\sim }{f}\left(x,z,s\right)}{\partial {x}^n}\right\}={\left( i\xi \right)}^n\hat{f}\left(\xi, z,s\right) $$

(34)

Applying Laplace and Fourier transforms defined by (31)–(34) on Eqs. (24)-(29) yields

$$ -\left(1+{\delta}_5\right){\xi}^2\hat{u}+\left({\delta}_4+{\delta}_5\right) i\xi D\hat{w}+{\delta}_2\left({D}^2\hat{u}+ i\xi D\hat{w}\ \right)- i\xi \left\{\hat{\varphi}-\left(-{a}_1{\xi}^2\hat{\varphi}+{a}_3{D}^2\hat{\varphi}\right)\right\}=\left(\frac{\varepsilon_0{\mu}_0^2{H}_0^2}{\rho }+1\right){s}^2\hat{u}, $$

(35)

$$ \left({\delta}_1+{\delta}_5\right) i\xi D\hat{u}-{\delta}_2{\xi}^2\hat{w}+\left({\delta}_3+{\delta}_5\right){D}^2\hat{w}-\frac{\beta_3}{\beta_1}D\left\{\hat{\varphi}-\left(-{a}_1{\xi}^2\hat{\varphi}+{a}_3{D}^2\hat{\varphi}\right)\right\}=\left(\frac{\varepsilon_0{\mu}_0^2{H}_0^2}{\rho }+1\right){s}^2\hat{w}, $$

(36)

$$ -{K}_1{\xi}^2\hat{\varphi}+{K}_3{D}^2\hat{\varphi}=\left(1+G\right)\left[s\left({\delta}_6 i\xi \hat{u}+{\delta}_8D\hat{w}\right)+{\delta}_7s\left\{\hat{\varphi}-\left(-{a}_1{\xi}^2\hat{\varphi}+{a}_3{D}^2\hat{\varphi}\right)\right\}\right], $$

(37)

where

$$ D=\frac{d}{dz},\mathrm{G}=\frac{\uptau_0}{\upchi}\left[\left(1-{\mathrm{e}}^{-\mathrm{s}\upchi}\right)\left(1-\frac{2\mathrm{b}}{\upchi \mathrm{s}}+\frac{2{\mathrm{a}}^2}{\upchi^2{\mathrm{s}}^2}\right)-\left({\mathrm{a}}^2-2\mathrm{b}+\frac{2{\mathrm{a}}^2}{\upchi \mathrm{s}}\right){\mathrm{e}}^{-\mathrm{s}\upchi}\right]. $$

These equations on further simplifications become

$$ \left[-\left(1+{\delta}_5\right){\xi}^2-\left(\frac{\varepsilon_0{\mu}_0^2{H}_0^2}{\rho }+1\right){s}^2+{\delta}_2{D}^2\right]\hat{u}\left(\xi, z,s\right)+\left[\left({\delta}_4+{\delta}_5+{\delta}_2\right) i\xi D\right]\hat{w}\left(\xi, z,s\right)+\left(-\mathrm{i}\xi \right)\left[1+{a}_1{\xi}^2-{a}_3{D}^2\right]\hat{\varphi}\left(\xi, z,s\right)=0, $$

(38)

$$ \left[\left({\delta}_1+{\delta}_5\right) i\xi D\right]\hat{u}\left(\xi, z,s\right)+\left[-{\delta}_2{\xi}^2+\left({\delta}_3+{\delta}_5\right){D}^2-\left(\frac{\varepsilon_0{\mu}_0^2{H}_0^2}{\rho }+1\right){s}^2\right]\hat{w}\left(\xi, z,s\right)-\frac{\beta_3}{\beta_1}D\left[1+{a}_1{\xi}^2-{a}_3{D}^2\right]\hat{\varphi}\left(\xi, z,s\right)=0, $$

(39)

$$ \left[\left(1+G\right)\mathrm{s}{\delta}_6 i\xi \right]\hat{u}\left(\xi, z,s\right)+\left[\left(1+G\right)\mathrm{s}{\delta}_8D\right]\hat{w}\left(\xi, z,s\right)+\left[-{K}_1{\xi}^2+{K}_3{D}^2+\left(1+G\right){\delta}_7s\left(1+{a}_1{\xi}^2-{a}_3{D}^2\right)\right]\hat{\varphi}\left(\xi, z,s\right)=0, $$

(40)

The above equations can be written as

$$ \left[{\zeta}_1+{\delta}_2{D}^2\right]\hat{u}\left(\xi, z,s\right)+\left[{\zeta}_2D\right]\hat{w}\left(\xi, z,s\right)+\left[{\upzeta}_3+{\upzeta}_4{D}^2\right]\hat{\varphi}\left(\xi, z,s\right)=0, $$

(41)

$$ \left[{\zeta}_5D\right]\hat{u}\left(\xi, z,s\right)+\left[{\zeta}_6+{\zeta}_7{D}^2\right]\hat{w}\left(\xi, z,s\right)+\left[{\zeta}_8D+{\zeta}_9{D}^3\right]\hat{\varphi}\left(\xi, z,s\right)=0, $$

(42)

$$ \left[{\zeta}_{10}\right]\hat{u}\left(\xi, z,s\right)+\left[{\zeta}_{11}\right]\hat{w}\left(\xi, z,s\right)+\left[{\zeta}_{12}+{\zeta}_{13}{D}^2\right]\hat{\varphi}\left(\xi, z,s\right)=0, $$

(43)

Equations (41)–(43) will have a non-trivial solution if determinant of coefficient matrix of $\left(\hat{u},\hat{w},\hat{\varphi}\right)$ vanishes, and thus we obtain the characteristic equation as

$$ \left({AD}^6+{BD}^4+{CD}^2+E\right)\left(\hat{u},\hat{w},\hat{\varphi}\right)=0, $$

(44)

where

$$ {\displaystyle \begin{array}{c}D=\frac{d}{dz},\mathrm{A}=-{\updelta}_2{\upzeta}_{11}{\upzeta}_9+{\upzeta}_{13}{\updelta}_2{\upzeta}_7,\\ {}\mathrm{B}={\updelta}_2{\upzeta}_6{\upzeta}_{13}+{\upzeta}_7{\upzeta}_1{\upzeta}_{13}+{\updelta}_2{\upzeta}_7{\upzeta}_{12}-{\updelta}_2{\upzeta}_{11}{\upzeta}_8-{\upzeta}_1{\upzeta}_9{\upzeta}_{11}-{\upzeta}_5{\delta}_2{\upzeta}_{13}+{\delta}_2{\upzeta}_{10}{\upzeta}_9+{\upzeta}_{11}{\upzeta}_4{\upzeta}_5-{\upzeta}_{10}{\upzeta}_7{\upzeta}_4,\\ {}\begin{array}{c}\mathrm{C}={\upzeta}_{13}{\upzeta}_1{\upzeta}_6+{\updelta}_2{\upzeta}_6{\upzeta}_{12}+{\upzeta}_1{\upzeta}_7{\upzeta}_{12}-{\upzeta}_1{\upzeta}_{11}{\upzeta}_8+{\upzeta}_4{\upzeta}_8{\upzeta}_9-{\upzeta}_5{\delta}_2{\upzeta}_{12}-{\upzeta}_{10}{\delta}_2{\upzeta}_8+{\upzeta}_{11}{\upzeta}_3{\upzeta}_5-{\upzeta}_3{\upzeta}_7{\upzeta}_{10},\\ {}E={\upzeta}_{12}{\upzeta}_1{\upzeta}_6-{\upzeta}_{10}{\upzeta}_6{\zeta}_3,\\ {}\begin{array}{c}{\upzeta}_1=-\left(1+{\delta}_5\right){\xi}^2-\left(\frac{\varepsilon_0{\mu}_0^2{H}_0^2}{\rho }+1\right){s}^2,{\upzeta}_2=\left({\delta}_4+{\delta}_5+{\delta}_2\right) i\xi, {\upzeta}_3=- i\xi \left(1+{a}_1{\xi}^2\right),\\ {}{\upzeta}_4={a}_3 i\xi, {\upzeta}_5=\left({\delta}_1+{\delta}_5\right) i\xi, {\upzeta}_6=-{\delta}_2{\xi}^2-\left(\frac{\varepsilon_0{\mu}_0^2{H}_0^2}{\rho }+1\right){s}^2,{\upzeta}_7=\left({\delta}_3+{\delta}_5\right),\\ {}\begin{array}{c}{\upzeta}_8=-\left(1+{a}_1{\xi}^2\right)\frac{\upbeta_3}{\upbeta_1},{\upzeta}_9=\frac{\beta_3}{\beta_1}{a}_3,{\upzeta}_{10}=\left[\left(1+G\right)\mathrm{s}{\delta}_6 i\xi \right],{\upzeta}_{11}=\left(1+G\right)\mathrm{s}{\delta}_8,\\ {}\ {\upzeta}_{12}=\left[-{K}_1{\xi}^2+\left(1+G\right){\delta}_7s\left(1+{a}_1{\xi}^2\right)\right],{\upzeta}_{13}={K}_3-\left(1+G\right){\delta}_7s{a}_3\end{array}\end{array}\end{array}\end{array}} $$

The roots of Eq. (44) are ± λ_i, (i = 1, 2, 3). The solution of Eqs. (41)–(43) satisfying the radiation condition that $\left(\hat{u},\hat{w},\hat{\varphi}\right)\to 0\ \mathrm{as}\ z\to \infty$ can be written as

$$ \hat{\mathrm{u}}\left(\xi, z,s\right)={\sum}_{\mathrm{j}=1}^3{A}_j{e}^{-{\lambda}_jz}, $$

(45)

$$ \hat{\mathrm{w}}\left(\xi, z,s\right)={\sum}_{j=1}^3{d}_j{A}_j{e}^{-{\lambda}_{\mathrm{j}}z}, $$

(46)

$$ \hat{\upvarphi}\left(\xi, z,s\right)={\sum}_{j=1}^3{l}_j{A}_j{e}^{-{\lambda}_jz}, $$

(47)

where A_j, j = 1, 2, 3 being undetermined constants and d_j and l_j are given by

$$ {d}_j=\frac{\delta_2{\zeta}_{13}{\lambda}_j^4+\left({\zeta}_{13}{\zeta}_1-{\upzeta}_{10}{\upzeta}_4+{\delta}_2{\zeta}_{12}\right){\lambda}_{\mathrm{j}}^2+{\zeta}_1{\zeta}_{12}-{\zeta}_{10}{\zeta}_3}{\left({\upzeta}_{13}{\upzeta}_7-{\upzeta}_1{\upzeta}_9\right){\lambda}_j^4+\left({\upzeta}_{13}{\zeta}_6+{\zeta}_{12}{\zeta}_7-{\zeta}_1{\zeta}_8\right){\lambda}_j^2+{\zeta}_{12}{\zeta}_6}, $$

(48)

$$ {l}_j=\frac{\delta_2{\upzeta}_7{\lambda}_j^4+\left({\delta}_2{\zeta}_6+{\zeta}_1{\upzeta}_7-{\delta}_2{\zeta}_5\right){\lambda}_{\mathrm{j}}^2+{\zeta}_6{\zeta}_1}{\left({\upzeta}_{13}{\upzeta}_7-{\upzeta}_1{\upzeta}_9\right){\lambda}_j^4+\left({\upzeta}_{13}{\zeta}_6+{\zeta}_{12}{\zeta}_7-{\zeta}_1{\zeta}_8\right){\lambda}_{\mathrm{j}}^2+{\zeta}_{12}{\zeta}_6}. $$

(49)

$$ {\hat{t}}_{11}\left(\xi, z,s\right)= i\xi \hat{u}\left(\xi, z,s\right)+{\delta}_4\mathrm{D}\hat{w}\left(\xi, z,s\right)-\frac{\beta_3}{\beta_1}\left[1+{a}_1{\xi}^2-{a}_3{D}^2\right]\hat{\varphi}\left(\xi, z,s\right), $$

(50)

$$ {\hat{t}}_{33}\left(\xi, z,s\right)={\delta}_4 i\xi \hat{u}\left(\xi, z,s\right)+{\updelta}_3\mathrm{D}\hat{w}\left(\xi, z,s\right)-\frac{\beta_3}{\beta_1}\left[1+{a}_1{\xi}^2-{a}_3{D}^2\right]\hat{\varphi}\left(\xi, z,s\right), $$

(51)

$$ {\hat{t}}_{13}\left(\xi, z,s\right)={\delta}_2\left(D\hat{u}\left(\xi, z,s\right)+\mathrm{i}\xi \hat{w}\left(\xi, z,s\right)\right). $$

(52)

Thus, using (45)–(47) in Eqs. (50)–(52) gives

$$ {\hat{t}}_{11}\left(\xi, z,s\right)= i\xi {\sum}_{\mathrm{j}=1}^3{A}_j{e}^{-{\lambda}_jz}+{\delta}_4\mathrm{D}{\sum}_{j=1}^3{d}_j{A}_j{e}^{-{\lambda}_{\mathrm{j}}z}-\left[1+{a}_1{\xi}^2-{a}_3{D}^2\right]{\sum}_{j=1}^3{l}_{\mathrm{j}}{A}_j{e}^{-{\lambda}_jz}, $$

(53)

$$ {\hat{t}}_{33}\left(\xi, z,s\right)={\delta}_4 i\xi {\sum}_{\mathrm{j}=1}^3{A}_j{e}^{-{\lambda}_jz}+{\updelta}_3\mathrm{D}{\sum}_{j=1}^3{d}_j{A}_j{e}^{-{\lambda}_{\mathrm{j}}z}-\frac{\beta_3}{\beta_1}\left[1+{a}_1{\xi}^2-{a}_3{D}^2\right]{\sum}_{j=1}^3{l}_{\mathrm{j}}{A}_j{e}^{-{\lambda}_jz}, $$

(54)

$$ {\hat{t}}_{13}\left(\xi, z,s\right)={\delta}_2\left(D{\sum}_{\mathrm{j}=1}^3{A}_j{e}^{-{\lambda}_jz}+\mathrm{i}\xi {\sum}_{j=1}^3{d}_j{A}_j{e}^{-{\lambda}_{\mathrm{j}}z}\right). $$

(55)

which on further simplification gives

$$ {\hat{t}}_{11}\left(\xi, z,s\right)=\left(\left( i\xi -{\delta}_4{\lambda}_1{d}_1-\left(\left[1+{a}_1{\xi}^2-{a}_3{\lambda_1}^2\right]{l}_1\right)\right){e}^{-{\lambda}_1z}{A}_1+\left( i\xi -{\delta}_4{\lambda}_2{d}_2-\left(\left[1+{a}_1{\xi}^2-{a}_3{\lambda_2}^2\right]{l}_2\right)\right){e}^{-{\lambda}_2z}{A}_2+\left( i\xi -{\delta}_4{\lambda}_3{d}_3-\left(\left[1+{a}_1{\xi}^2-{a}_3{\lambda_3}^2\right]{l}_3\right)\right){e}^{-{\lambda}_3z}{A}_3\right), $$

(56)

$$ {\hat{t}}_{33}\left(\xi, z,s\right)=\left(\left({\delta}_4 i\xi -{\delta}_3{\lambda}_1{d}_1-\frac{\beta_3}{\beta_1}\left(\left[1+{a}_1{\xi}^2-{a}_3{\lambda_1}^2\right]{l}_1\right)\right){e}^{-{\lambda}_1z}{A}_1+\left({\delta}_4 i\xi -{\delta}_3{\lambda}_2{d}_2-\frac{\beta_3}{\beta_1}\left(\left[1+{a}_1{\xi}^2-{a}_3{\lambda_2}^2\right]{l}_2\right)\right){e}^{-{\lambda}_2z}{A}_2+\left({\delta}_4 i\xi -{\delta}_3{\lambda}_3{d}_3-\frac{\beta_3}{\beta_1}\left(\left[1+{a}_1{\xi}^2-{a}_3{\lambda_3}^2\right]{l}_3\right)\right){e}^{-{\lambda}_3z}{A}_3\right), $$

(57)

$$ {\hat{t}}_{13}\left(\xi, z,s\right)=\left(-{\lambda}_1+ i\xi {d}_1\right){\delta}_2{A}_1{e}^{-{\lambda}_1z}+\left(-{\lambda}_2+ i\xi {d}_2\right){\delta}_2{A}_2{e}^{-{\lambda}_2z}+\left(-{\lambda}_3+ i\xi {d}_3\right){\delta}_2{A}_3{e}^{-{\lambda}_3z}. $$

(58)

which can be further simplified as

$$ {\hat{t}}_{11}\left(\xi, z,s\right)=\left({S}_1{A}_1+{S}_2{A}_2+{S}_3{A}_3\right) $$

(59)

$$ {\hat{t}}_{33}\left(\xi, z,s\right)=\left({M}_1{A}_1+{M}_2{A}_2+{M}_3{A}_3\right) $$

(60)

$$ {\hat{t}}_{13}\left(\xi, z,s\right)=\left({N}_1{A}_1+{N}_2{A}_2+{N}_3{A}_3\right) $$

(61)

where

$$ {S}_j=\left\{ i\xi -{\delta}_4{d}_j{\lambda}_j-{l}_j\left[\left(1+{a}_1{\xi}^2\right)-{a}_3{\lambda}_j^2\right]\right\}{e}^{-{\lambda}_jz} $$

(62)

$$ {N}_j={\delta}_2\left(-{\lambda}_j+ i\xi {d}_j\right){e}^{-{\lambda}_jz}, $$

(63)

$$ {M}_j=\left\{{\delta}_4 i\xi -{\delta}_3{d}_j{\lambda}_j-\frac{\beta_3}{\beta_1}{l}_j\left[\left(1+{a}_1{\xi}^2\right)-{a}_3{\lambda}_j^2\right]\right\}{e}^{-{\lambda}_jz}, $$

(64)

Boundary conditions

The appropriate boundary conditions for the thermally insulated boundaries z = 0 are

$$ {t}_{33}\left(x,z,t\right)=-{F}_1{\psi}_1(x)H(t), $$

(65)

$$ {t}_{31}\left(x,z,t\right)=-{F}_2{\psi}_2(x)H(t), $$

(66)

$$ \frac{\partial \varphi }{\partial z}\left(x,z,t\right)+\mathrm{h}\varphi =0. $$

(67)

where h → 0 corresponds to thermally insulated surface and h → ∞ corresponds to isothermal surface, F₁ and F₂ are the magnitude of the forces applied and ψ₁(x) and ψ₂(x) specify the vertical and horizontal load distribution function along x-axis.

Applying dimensionless conditions (26) and suppressing primes and then applying the Laplace and Fourier transform defined by (30) and (33) on the boundary conditions (65)–(67) and using (47), (60) and (61), the three equations in three variables A₁, A₂, A₃ are

$$ {\hat{t}}_{33}\left(\xi, 0,s\right)={M}_1{A}_1+{M}_2{A}_2+{M}_3{A}_3=\frac{-{F}_1{\psi}_1\left(\xi \right)}{\mathrm{s}}, $$

(68)

$$ {\hat{t}}_{13}\left(\xi, 0,s\right)=\left({N}_1{A}_1+{N}_2{A}_2+{N}_3{A}_3\right)=\frac{-{F}_2{\psi}_2\left(\xi \right)}{\mathrm{s}}, $$

(69)

$$ \mathrm{D}\hat{\upvarphi}\left(\xi, 0,s\right)+\mathrm{h}\hat{\upvarphi}\left(\xi, 0,s\right)=\left({R}_1{A}_1+{R}_2{A}_2+{R}_3{A}_3\right)=0, $$

(70)

where R_j =  − λ_jl_j + hl_j, note at z = 0, ${\boldsymbol{e}}^{-{\boldsymbol{\lambda}}_{\boldsymbol{j}}\boldsymbol{z}}=\mathbf{1},$ in (62–64) for values of ${\boldsymbol{S}}_{\boldsymbol{j}},{\boldsymbol{M}}_{\boldsymbol{j}},{\boldsymbol{N}}_{\boldsymbol{j}}\ \mathbf{and}\ \boldsymbol{D}=\frac{\boldsymbol{\partial}}{\boldsymbol{\partial z}}.$

Case I: Thermally insulated boundaries

When h = 0 solving (68)–(70), the values of A₁, A₂, A₃ are obtained as

$$ {A}_1=\frac{-{F}_1{\psi}_1\left(\xi \right){\Lambda}_{11}+{F}_2{\psi}_2\left(\xi \right){\Lambda}_{21}}{\Lambda \mathrm{s}}, $$

(71)

$$ {A}_2=\frac{F_1{\psi}_1\left(\xi \right){\Lambda}_{12}-{F}_2{\psi}_2\left(\xi \right){\Lambda}_{22}}{\Lambda \mathrm{s}}, $$

(72)

$$ {A}_3=\frac{F_1{\psi}_1\left(\xi \right){\Lambda}_{13}-{F}_2{\psi}_2\left(\xi \right){\Lambda}_{23}}{\Lambda \mathrm{s}}, $$

(73)

where

$$ {\displaystyle \begin{array}{c}{\Lambda}_{11}=-{N}_2{R}_3+{R}_2{N}_3,\\ {}{\Lambda}_{12}={N}_1{R}_3-{R}_1{N}_3,\\ {}\begin{array}{c}{\Lambda}_{13}=-{N}_1{R}_2+{R}_1{N}_2,\\ {}{\Lambda}_{21}={M}_2{R}_3-{R}_2{M}_3,\\ {}\begin{array}{c}{\Lambda}_{22}=-{M}_1{R}_3+{R}_1{M}_3,\\ {}{\Lambda}_{23}={M}_1{R}_2-{R}_1{M}_2,\\ {}\begin{array}{c}\Lambda =-{M}_1{\Lambda}_{11}-{M}_2{\Lambda}_{12}-{M}_3{\Lambda}_{13},\\ {}{R}_j=-{\lambda}_j{l}_j.\end{array}\end{array}\end{array}\end{array}} $$

The components of displacement, conductive temperature, normal stress and tangential stress are obtained from (45) to (47) and (59) to (61) by putting the values of A₁, A₂, A₃ from (71) to (73) as

$$ \hat{u}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{\Lambda}_{1i}{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{\Lambda}_{2i}{e}^{-{\lambda}_iz}\right], $$

(74)

$$ \hat{w}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{d}_i{\Lambda}_{1i}{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{d}_i{\Lambda}_{2i}{e}^{-{\lambda}_iz}\right], $$

(75)

$$ \hat{\varphi}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{l}_i{\Lambda}_{1i}{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{l}_i{\Lambda}_{2i}{e}^{-{\lambda}_iz}\right], $$

(76)

$$ \hat{t_{11}}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{S}_i{\Lambda}_{1i}{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{S}_i{\Lambda}_{2i}{e}^{-{\lambda}_iz}\right], $$

(77)

$$ \hat{t_{13}}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{N}_i{\Lambda}_{1i}{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{N}_i{\Lambda}_{2i}{e}^{-{\lambda}_iz}\right], $$

(78)

$$ \hat{t_{33}}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{M}_i{\Lambda}_{1i}{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}\Lambda}\left[{\sum}_{i=1}^3{M}_i{\Lambda}_{2i}{e}^{-{\lambda}_iz}\right], $$

(79)

Case II: Isothermal boundaries

When h→ ∞ ,solving (68)–(70), using Cramer’s rule, the values of A₁, A₂, A₃ are obtained as

$$ {A}_1=\frac{-{F}_1{\psi}_1\left(\xi \right){\Lambda}_{11}^{\ast }+{F}_2{\psi}_2\left(\xi \right){\Lambda}_{21}^{\ast }}{\Lambda^{\ast}\mathrm{s}}, $$

(80)

$$ {A}_2=\frac{F_1{\psi}_1\left(\xi \right){\Lambda}_{12}^{\ast }-{F}_2{\psi}_2\left(\xi \right){\Lambda}_{22}^{\ast }}{\Lambda^{\ast}\mathrm{s}}, $$

(81)

$$ {A}_3=\frac{F_1{\psi}_1\left(\xi \right){\Lambda}_{13}^{\ast }-{F}_2{\psi}_2\left(\xi \right){\Lambda}_{23}^{\ast }}{\Lambda^{\ast}\mathrm{s}}, $$

(82)

where

$$ {\displaystyle \begin{array}{c}{\Lambda}_{11}^{\ast }=-{N}_2{R}_3^{\ast }+{R}_2^{\ast }{N}_3,\\ {}{\Lambda}_{12}^{\ast }={N}_1{R}_3^{\ast }-{R}_1^{\ast }{N}_3,\\ {}\begin{array}{c}{\Lambda}_{13}^{\ast }=-{N}_1{R}_2^{\ast }+{R}_1^{\ast }{N}_2,\\ {}{\Lambda}_{21}^{\ast }={M}_2{R}_3^{\ast }-{R}_2^{\ast }{M}_3,\\ {}\begin{array}{c}{\Lambda}_{22}^{\ast }=-{M}_1{R}_3^{\ast }+{R}_1^{\ast }{M}_3,\\ {}{\Lambda}_{23}^{\ast }={M}_1{R}_2^{\ast }-{R}_1^{\ast }{M}_2,\\ {}{\Lambda}^{\ast }=-{M}_1{\Lambda}_{11}^{\ast }-{M}_2{\Lambda}_{12}^{\ast }-{M}_3{\Lambda}_{13}^{\ast },\end{array}\end{array}\end{array}} $$

where ${R}_j^{\ast }={l}_j$.

The components of displacement, conductive temperature, normal stress and tangential stress are obtained from (45) to (47) and (59) to (61) by putting the values of A₁, A₂, A₃ from (80) to (82) as

$$ \hat{u}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{\Lambda}_{1i}^{\ast }{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{\Lambda}_{2i}^{\ast }{e}^{-{\lambda}_iz}\right], $$

(83)

$$ \hat{w}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{l}_i{\Lambda}_{1i}^{\ast }{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{d}_i{\Lambda}_{2i}{e}^{-{\lambda}_iz}\right], $$

(84)

$$ \hat{\varphi}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{l}_i{\Lambda}_{1i}^{\ast }{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{l}_i{\Lambda}_{2i}{e}^{-{\lambda}_iz}\right], $$

(85)

$$ \hat{t_{11}}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{S}_i{\Lambda}_{1i}^{\ast }{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{S}_i{\Lambda}_{2i}^{\ast }{e}^{-{\lambda}_iz}\right], $$

(86)

$$ \hat{t_{13}}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{N}_i{\Lambda}_{1i}^{\ast }{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{N}_i{\Lambda}_{2i}^{\ast }{e}^{-{\lambda}_iz}\right], $$

(87)

$$ \hat{t_{33}}=\frac{F_1{\hat{\psi}}_1\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{M}_i{\Lambda}_{1i}^{\ast }{e}^{-{\lambda}_iz}\right]+\frac{F_2{\hat{\psi}}_2\left(\xi \right)}{\mathrm{s}{\Lambda}^{\ast }}\left[{\sum}_{i=1}^3{M}_i{\Lambda}_{2i}^{\ast }{e}^{-{\lambda}_iz}\right], $$

(88)

Applications

We consider a normal line load F₁ per unit length acting in the positive z-axis on the plane boundary z = 0 along the y-axis and a tangential load F₂ per unit length, acting at the origin in the positive x-axis. Suppose an inclined load, F₀ per unit length is acting on the y-axis and its inclination with z-axis is θ (see Fig. 1), we have

$$ {\mathrm{F}}_1={\mathrm{F}}_0\mathrm{cos}\uptheta\ \mathrm{and}\ {\mathrm{F}}_2={\mathrm{F}}_0\mathrm{sin}\uptheta . $$

(89)

Fig. 1

Inclined load over a transversely isotropic magneto-thermoelastic solid

Special cases

Concentrated force

The solution due to concentrated normal force on the half space is obtained by setting

$$ {\psi}_1(x)=\delta (x),{\psi}_2(x)=\delta (x), $$

(90)

where δ(x) is Dirac delta function.

Applying Fourier transform defined by (33) on (90) yields

$$ {\hat{\psi}}_1\left(\xi \right)=1,{\hat{\psi}}_2\left(\xi \right)=1. $$

(91)

For case I, using (91) in Eqs. (74)–(79) and for case II, using (91) in Eqs. (83)–(88), the components of displacement, stress and conductive temperature are obtained for case I and case II, respectively.

Uniformly distributed force

The solution due to uniformly distributed force applied on the half space is obtained by setting

$$ {\psi}_1(x),{\psi}_2(x)=\left\{\begin{array}{c}1\ \mathrm{if}\mid \mathrm{x}\mid \le \mathrm{m}\\ {}0\ \mathrm{if}\mid \mathrm{x}\mid >m\end{array}\right.. $$

(92)

The Fourier transforms of ψ₁(x) and ψ₂(x) with respect to the pair (x, ξ) for the case of a uniform strip load of non-dimensional width 2 m applied at origin of co-ordinate system x = z = 0 in the dimensionless form after suppressing the primes becomes

$$ {\hat{\psi}}_1\left(\xi \right)={\hat{\psi}}_2\left(\xi \right)=\left\{\frac{2\ \sin \left(\xi m\right)}{\xi}\right\},\xi \ne 0. $$

(93)

For case I, using (93) in Eqs. (74)–(79) and for case II, using (93) in Eqs. (83)–(88), the components of displacement, stress and conductive temperature are obtained for case I and case II.

Linearly distributed force

The solution due to linearly distributed force applied on the half space is obtained by setting

$$ \left\{{\psi}_1(x),{\psi}_2(x)\right\}=\left\{\begin{array}{c}1-\frac{\mid x\mid }{m}\ \mathrm{if}\mid \mathrm{x}\mid \le \mathrm{m}\\ {}0\ \mathrm{if}\mid \mathrm{x}\mid >m\end{array}\right.. $$

(94)

Here, 2 m is the width of the strip load, and applying the transform defined by (33) on (94), we get

$$ {\hat{\psi}}_1\left(\xi \right)={\hat{\psi}}_2\left(\xi \right)=\left\{\frac{2\left(1-\mathit{\cos}\left(\xi m\right)\right)}{\xi^2m}\right\},\xi \ne 0. $$

(95)

For case I, using (95) in Eqs. (74)–(79) and for case II, using (95) in Eqs. (83)–(88), the components of displacement, stress and conductive temperature are obtained for case I and case II, respectively.

Inversion of the transformation

To find the solution of the problem in physical domain and to invert the transforms in Eqs (74)–(79) and for case II in Eqs. (83)–(88), here, the displacement components, normal and tangential stresses and conductive temperature are functions of z, the parameters of Laplace and Fourier transforms s and ξ respectively and hence are of the form $\hat{f\ }\left(\xi, z,s\right)$. To find the function $\overset{\sim }{f}\left(x,z,t\right)$in the physical domain, we first invert the Fourier transform using

$$ \overset{\sim }{f}\left(x,z,s\right)=\frac{1}{2\pi }{\int}_{-\infty}^{\infty }{e}^{- i\xi x}\hat{f}\left(\xi, z,s\right) d\xi =\frac{1}{2\pi }{\int}_{-\infty}^{\infty}\left|\mathit{\cos}\left(\xi x\right){f}_e- i sin\left(\xi x\right){f}_o\right| d\xi, $$

(96)

where f_e and f_o are respectively the odd and even parts of $\hat{f}\left(\xi, z,s\right).$ We obtain Fourier inverse transform by replacing s by ω in (96). Following Honig and Hirdes (1984), the Laplace transform function $\overset{\sim }{f}\left(x,z,s\right)$ can be inverted to f(x, z, t) for problem I by

$$ f\left(x,z,t\right)=\frac{1}{2\pi i}\underset{e^{-i\infty }}{\overset{e^{+i\infty }}{\int }}\overset{\sim }{f}\left(x,z,s\right){e}^{- st} ds. $$

(97)

The last step is to calculate the integral in Eq. (97). The method for evaluating this integral is described in Press (1986).

Numerical results and discussion

To demonstrate the theoretical results and effect of memory-dependent derivatives, the physical data for cobalt material, which is transversely isotropic, is taken from Kumar et al. (2016) given as

$$ {C}_{11}=3.07\times {10}^{11}N{m}^{-2},{C}_{33}=3.581\times {10}^{11}N{m}^{-2},{C}_{13}=1.027\times {10}^{10}N{m}^{-2},{C}_{44}=1.510\times {10}^{11}N{m}^{-2},{\beta}_1=7.04\times {10}^6N{m}^{-2}{\deg}^{-1},{\beta}_3=6.90\times {10}^6N{m}^{-2}{\deg}^{-1},\rho =8.836\times {10}^3K{gm}^{-3},{C}_E=4.27\times {10}^2 jK{g}^{-1}{\deg}^{-1},{K}_1=0.690\times {10}^2W{m}^{-1}{Kdeg}^{-1},{K}_3=0.690\times {10}^2W{m}^{-1}{K}^{-1},{K}_1^{\ast }=1.313\times {10}^2 Wsec,{K}_3^{\ast }=1.54\times {10}^2 Wsec,{\mathrm{T}}_0=298\mathrm{K},{\mathrm{H}}_0=1\mathrm{J}{\mathrm{m}}^{-1}\mathrm{n}{\mathrm{b}}^{-1},{\varepsilon}_0=8.838\times {10}^{-12}\mathrm{F}{\mathrm{m}}^{-1},\mathrm{L}=1. $$

The values of rotation Ω and magnetic effect H₀ are taken as 0.5 and 10, respectively. The software FORTRAN has been used to determine the components of displacement, stress and conductive temperature. A comparison has been made to show the effect of kernel function of MDD on the various quantities.

• 1. The solid line with square symbol represents a = 0.0, b = 0.0, K(t − ξ) = 1,

• 2. The dashed line with circle symbol represents $a=0.0,b=\frac{1}{2},K\left(t-\xi \right)=1+\left(\xi -t\right)/\chi$,

• 3. The dotted line with triangle symbol represents $a=0.0,b=\frac{1}{\chi },K\left(t-\xi \right)=\xi -t+1$,

• 4. The dash-dotted line with diamond symbol represents a = 1, b = 1, K(t − ξ) = [1 + (ξ − t)/χ]²

Figures 2, 3, 4, 5, 6 and 7 shows the variations of the displacement components (u and w), conductive temperature φ and stress components ( t₁₁, t₁₃ and t₃₃) for a transversely isotropic magneto-thermoelastic medium with concentrated force and with combined effects of rotation, two temperatures with different kernel function K(t − ξ), respectively. The displacement components (u and w), conductive temperature φ and stress components ( t₁₁ and t₁₃) illustrate the opposite behaviour for the kernel function $a=0.0,b=\frac{1}{\chi },K\left(t-\xi \right)=\xi -t+1$but with other kernel functions shows the same pattern. However, stress component t₃₃ illustrate the opposite behaviour for the kernel function [1 + (ξ − t)/χ]² but with other kernel functions shows the same pattern. These components vary (increases or decreases) during the initial range of distance near the loading surface of the inclined load and follow a small oscillatory pattern for the rest of the range of distance.

Fig. 2

Variation of the displacement component u with distance x

Fig. 3

Variation of the displacement component w with distance x

Fig. 4

Variation of the conductive temperature φ with distance x

Fig. 5

Variation of the stress component t₁₁with distance x

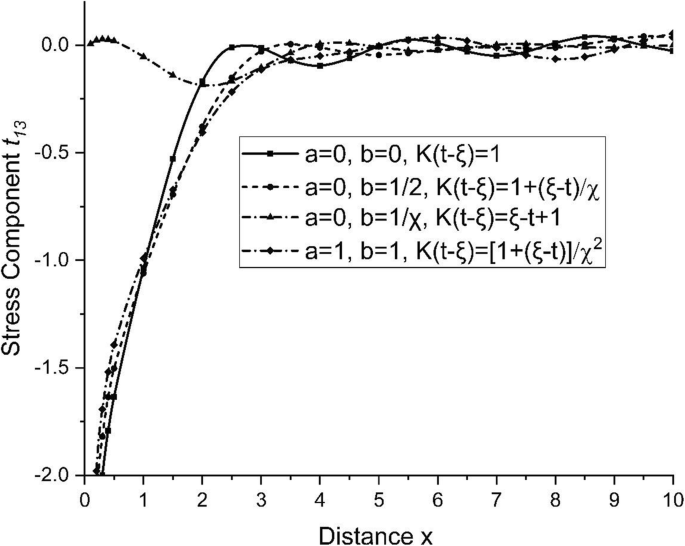

Fig. 6

Variation of the stress component t₁₃with distance x

Fig. 7

Variation of the stress component t₃₃with distance x

Conclusion

From the above study, the following is observed:

• Displacement components (u and w), conductive temperature φ and stress components ( t₁₁, t₁₃ and t₃₃) for a transversely isotropic magneto-thermoelastic medium with concentrated force and with combined effects of two-temperature model of thermoelasticity with different kernel functions of MDD, respectively

• In order to estimate the nature of the displacements, stresses and temperature distributions in the physical domain, an efficient approximate numerical inverse Fourier and Laplace transform technique is adopted.

• Moreover, the magnetic effect of two temperatures, rotation, and the angle of inclination of the applied load plays a key part in the deformation of all the physical quantities.

• K(t − ξ) = [1 + (ξ − t)/χ]² shows the more oscillatory nature for the displacement components and stress components.

• The result gives the inspiration to study magneto-thermoelastic materials with memory-dependent derivatives as an innovative domain of applicable thermoelastic solids.

• The shape of curves shows the impact of Kernel function on the body and fulfils the purpose of the study.

• The outcomes of this research are extremely helpful in the 2-D problem with dynamic response of memory-dependent derivatives in transversely isotropic magneto-thermoelastic medium with two temperatures which is advantageous to successful applications of memory dependence in heat conductive sense.

Nomenclature

δ_ij Kronecker delta

C_ijkl Elastic parameters

β_ij Thermal elastic coupling tensor

T Absolute temperature

T₀ Reference temperature

φ conductive temperature

t_ij Stress tensors

e_ij Strain tensors

u_i Components of displacement

ρ Medium density

C_E Specific heat

a_ij Two-temperature parameters

α_ij Linear thermal expansion coefficient

K_ij Thermal conductivity

T_ij Maxwell stress tensor

χ Time delay

μ₀ Magnetic permeability

K(t − ξ) Kernel function

$\overrightarrow{u}$ Displacement vector

${\overrightarrow{H}}_0$ Magnetic field intensity vector

$\overrightarrow{j}$ Current density vector

F_i Components of Lorentz force

τ₀ Relaxation time

ε₀ Electric permeability

δ(t) Dirac’s delta function

$\overrightarrow{h}$ Induced magnetic field vector

$\overrightarrow{E}$ Induced electric field vector
