Influence of temperature on the compression properties of expanded thermoplastic polyurethane (ETPU)
Journal of Materials Science: Materials in Engineering volume 19, Article number: 10 (2024)
Abstract
This study explores how expanded thermoplastic polyurethane (ETPU) responds to temperature and compression at various temperatures. Dynamic mechanical thermal analysis (DMTA) was used to understand the temperature influence at small deformations. To investigate the deformation behavior at different compression stages we employed in-situ CT measurements and 3D strain mapping. Through quasi-static compression tests at temperatures from − 50 to 120 °C, we determined the influence of temperature on compression modulus, elastic stress, stress at 50% deformation, densification, and energy absorption. Remarkably, ETPU demonstrates robust recovery after compression, particularly within the − 50 to 60 °C temperature range. Subsequent compression tests show consistent or even slightly increased compression properties, such as a 10% increase in energy absorption for samples previously tested at − 40 °C, indicating that ETPU can withstand prior exposure to different temperatures.
Introduction
Expanded thermoplastic polyurethane (ETPU) has gained widespread recognition, notably for its application as the midsole material in Adidas Boost shoes. The commercial success of ETPU stems from its unique blend of ease of processing and exceptional elasticity under high deformation (BASF SE 2024).
Bead foam components are commonly produced through a three-step procedure, starting with the fabrication of the base polymer. Subsequently, the polymer is transformed into expanded beads using either an autoclave or extrusion foaming method. Finally, these expanded beads are welded together to create the end product (Brütting et al. 2023; Raps et al. 2014). This results in a multi-scale morphology that is crucial in defining both the material’s structure and its mechanical response (Koch et al. 2023; Gebhart et al. 2019; Meuchelböck et al. 2023).
The mechanical properties of foams are influenced by the base material, its cellular structure, and foam density (Ashby 2006). However, the mechanical behavior of polymer foams varies with temperature, reflecting the temperature-dependent properties of the solid material (Gibson and Ashby 2014). Therefore, foams respond differently under varying temperature conditions. Given the frequent use of bead foams in environments with varying temperature conditions, this topic has significant relevance (Morton et al. 2020; Weingart et al. 2020; Himmelsbach et al. 2022).
Krundaeva et al. demonstrated that temperature has a significant impact on the dynamic compression characteristics of EPS foam. Specifically, it was observed that the compressive strength of the EPS foam decreased by approximately 13% when the temperature was increased to 50 °C. Conversely, a decrease in temperature to − 20 °C resulted in an 8% increase in the strength of the EPS foam (Krundaeva et al. 2016).
Morton et al. delves into the compression characteristics of EPP for car applications across a temperature spectrum spanning from − 30 to 60 °C. Their findings revealed a 110% increase in collapse stress, representing the transition point from the linear-elastic to plateau regime, at − 30 °C. Conversely, at 60 °C, there was a notable 50% decrease in this collapse stress when compared to the reference temperature of 23 °C (Morton et al. 2020).
Weingart et al. conducted a comparative analysis, assessing the mechanical performance of expanded polycarbonate (EPC) alongside expanded polypropylene (EPP) and expanded polyethylene terephthalate (EPET) at different ambient temperatures (25 °C, 80 °C, and 200 °C). Notably, compression, tensile, and flexural properties exhibited substantial reductions when increasing the temperature. For instance, EPP experienced a 45% decrease in tensile strength at 80 °C and a 61% decrease at 110 °C. In summary, the resistance of all three bead foams is decreased at higher temperatures. However, EPC demonstrated the least deterioration in mechanical performance, likely attributable to the superior temperature resistance of the solid PC material compared to PP and PET (Weingart et al. 2020).
Currently, research on the temperature-dependent behavior of ETPU is limited. Existing studies focussing on the autoclave process of ETPU indicate that higher saturation temperatures lead to more expansion, while increased pressure results in smaller cells; higher temperature at the same pressure creates larger cells (Zhao et al. 2018; Zhang et al. 2017). However, the TPU composition is crucial too. Zhang et al. found that a higher molecular weight of TPU’s soft segment affects foaming (Zhang et al. 2017). Saturation temperature and pressure significantly affect foam morphology by influencing the ordering of TPU’s hard segments in a highly elastic state, which is crucial for autoclave foaming and inter-bead bonding in welding (Jiang et al. 2021).
The structure of ETPU affects its deformation behavior. Singaravelu et al. demonstrated through in-situ X-ray microtomography that the compression behavior of ETPU bead foams is closely linked to its structure, with strain mapping underscoring how cellular irregularities affect local stability and void collapse. Additionally, they found that differences in ligament thickness and material distribution critically impact the mechanical response, leading to varied Poisson ratios in both individual expanded beads and molded plates (Singaravelu et al. 2019, 2021).
Ge et al. conducted a study that not only revealed a significant enhancement in the tensile and compression properties of ETPU with increased density but also showcased the impressive recovery capability of ETPU bead foam. Even after subjecting the material to 200-fold loading at 60% strain and allowing a recovery period of 6 days, only marginal decreases were observed in both compression modulus and stress at 60% strain (Ge et al. 2017). Compared to EPP, ETPU shows a very high resistance against cyclic-dynamic load (Meuchelböck et al. 2023). This robust fatigue behavior, in conjunction with its resilience in recovery, highlights ETPU’s suitability for applications requiring extended durability under cyclic loading (Ge et al. 2017; Meuchelböck et al. 2023).
Prior research on compact TPU reveals that temperature significantly influences the mechanical behavior of this elastic material. Slater et al. examined the alteration of compression set at various temperatures (23 °C, 50 °C, 70 °C, 80 °C) and observed a substantial increase from up to approx. 40% at 80 °C compared to 23 °C (Slater et al. 2011). Boubakri et al. illustrated the significant impact of temperature on TPU’s tensile properties. For instance, aging TPU at 70 °C for 60 days led to an increased modulus and increased tensile stress at 200% elongation (Boubakri et al. 2011). Kasgoz et al. demonstrated that slight temperature variations significantly impact TPU’s mechanical response. The tensile modulus decreased by approximately 50%, transitioning from 0.063 MPa at 30 °C to 0.030 MPa at 40 °C and 0.020 MPa at 50 °C. These changes occurred after thermal conditioning of the samples at their respective temperatures for 10 min (Kasgoz 2021).
In this study, we utilize 3D strain mapping to analyze deformation behavior and perform quasi-static tests on a commercially available ETPU grade at varying densities. This research covers a broad temperature range (− 50 to 120 °C) to evaluate its influence on compression properties. Our goal is to deepen the understanding of ETPU’s mechanical behavior, inspiring product enhancements and facilitating innovative applications.
Methods

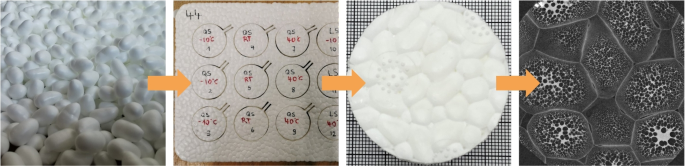

To minimize manufacturing effects, we utilized commercial ETPU expanded beads (Infinergy® 32-100 U10, BASF SE). These beads were welded to plates measuring 290 * 190 * 40 mm3 using a steam chest molding machine (Energy Foamer 5.0, Kurtz Ersa), with welding parameters based on the provided data sheet specifications. Three density ranges were produced by varying the crack distance during mold filling according to the datasheet (BASF SE 2024).
Subsequently, circular samples with 20 mm and 40 mm diameters were precision-cut from the plates using a water jet cutting device (Flow Mach 2). Afterwards, the samples were carefully separated from the plates using a cutter knife. For 20-mm diameter samples, the foam skin was removed on both sides, resulting in a 20-mm height without foam skin. After a minimum 144-h conditioning period at 23 °C and 50% relative humidity, the geometric density of each sample was determined (Fig. 1).
Morphology
To analyze the morphology of ETPU expanded beads, ten beads were longitudinally cut using textile scissors and examined with a scanning electron microscope (Zeiss Leo 1530, operating at 1.5 kV acceleration voltage). Due to the varied morphology of the beads, three distinct zones were visually identified for each bead, as illustrated in Fig. 2. The mean cell diameter was calculated with ImageJ by measuring the largest and smallest diameter of the cells. Within the inner circle K1, all complete cells are measured. Circle K2 is divided into four segments, while Circle K3 entails measuring all cells from one-eighth.
Density
The density \(\rho _A\) of 100 beads was determined using Archimedes’ principle and a density scale (Mettler Toledo AG245), with \(m_{\text {air}}\) representing the mass of the bead in air, \(m_{\text {H}{2}\text {O}}\) as the apparent mass of the bead under water, and \(\rho _{\text {H}_{2}\text {O}}\) denoting the density of water at the measurement temperature (25 °C) in Eq. 1.
The geometric density \(\rho\) of the test samples for DMTA and compression tests are calculated according to Eq. 2.
The mass m and volume V of the cylindrical samples are determined after a conditioning period of at least 144 h at laboratory conditions. The volume of the cylindrical sample is calculated using the height and diameter as the mean values obtained from measurements at three different positions.
Strain mapping using edge illumination
In order to investigate the deformation behavior, 3D-strain maps were generated at deformation levels between 2 and 5%, 30 and 35%, and 55 and 60%. Edge-illumination (EI) phase contrast imaging (Olivo 2021) was used as the primary imaging technique and strain retrieval was conducted using the commercial digital volume correlation (DVC) software package in AVIZO. For each loading condition, 1000 phase enhanced projections were obtained by applying the single shot phase retrieval method (Diemoz et al. 2017) on the raw projection images. A CT reconstruction was then performed using the vector geometry and the Feldkamp-Davis-Kress reconstruction algorithm from the ASTRA toolbox (van Aarle et al. 2016).

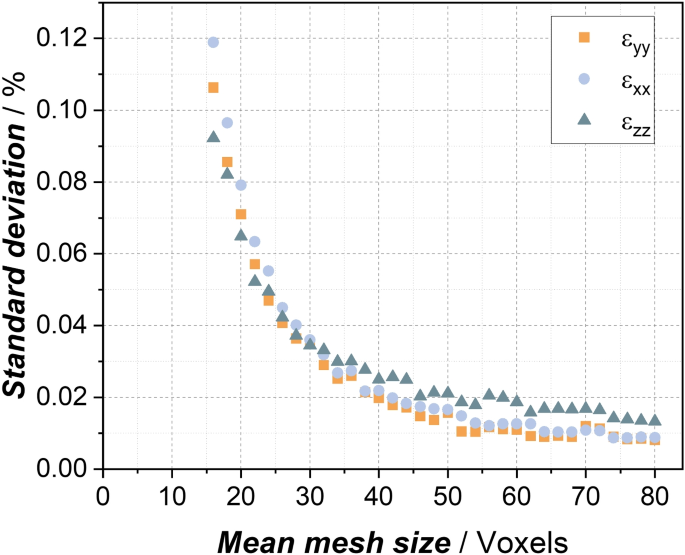

When using DVC, one has to make a trade-off between strain uncertainty and strain spatial resolution. The strain uncertainty depends on the characteristics of the primary imaging method and on the sample features, and generally increases for finer meshes. A zero-strain uncertainty measurement (Bay et al. 1999) was conducted, where two repeat scans of the sample under no strain were correlated. This was done for different mesh sizes and the standard deviation of the retrieved strain acted as an estimate for the strain uncertainty. The result of this procedure is plotted in Fig. 3. As expected, the uncertainty increases the finer the mesh size is chosen. For this study an average cell size of 20 voxels was chosen because overall strains of 3–5% were applied and therefore a standard deviation of \(\approx\)0.06% is still acceptable. Smaller meshes were not considered because the DVC algorithm did not converge. A more detailed description of the X-ray imaging system and the compression test procedure can be found in the supporting information section.
Segmentation of individual ETPU cells

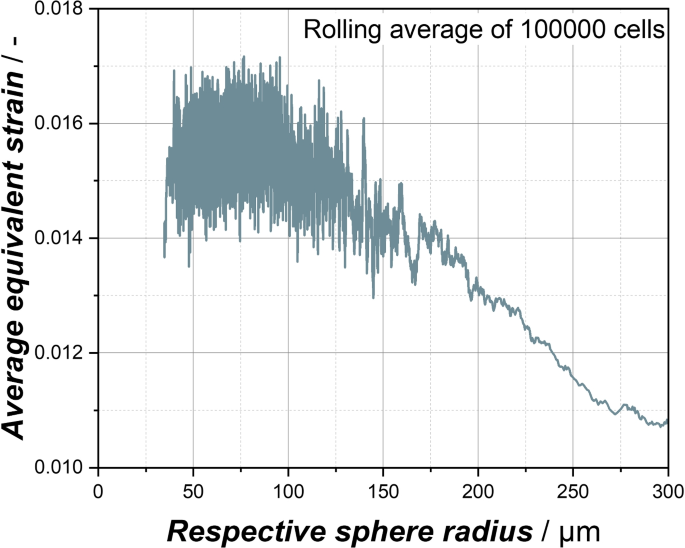

In order to investigate the influence of the ETPU cell size on the deformation behavior, single cells were segmented from the 2% deformation EI CT reconstruction. First, thresholding was used to serve as seed for a watershed segmentation algorithm. The resulting connected label field describing all the cells was separated into distinct objects by a random walk distance map. To avoid labels representing noise, labels with a volume below 10 voxels were excluded. Furthermore only labels with a shape factor between 1 and 2 were considered. Since the cells are expected to be spherical, the \(10^5\) labels with the least anisotropy were chosen. Then using the result of the 3D strain map the average strain for each label was calculated.
Dynamic mechancial analysis
Dynamical mechanical thermal analysis (DMTA) was performed using a DMA (EPLEXOR Gabo, Netzsch, Germany) equipped with a 150 N force cell. Static compression was set at 4% with a dynamic amplitude of ± 1%. Measurements were conducted at a frequency of 1 Hz and a heating rate of 1 K/min from − 80 to 140 °C. The temperature was controlled with a heated oven supplemented by liquid nitrogen. We chose to use DMTA to determine \(T_g\) by the maximum loss factor. This helped us identify the temperature ranges for performing the quasi-static tests, following Sircar et al. (1999).
Quasi-static testing
Samples underwent mechanical testing at temperatures ranging from − 50 to 120 °C. Given the varied behavior observed at different temperatures, categorizing the foam as solely “soft” or “hard” based on its glass transition temperature (\(T_G\)) was deemed inadequate. To enable a more accurate comparison across temperatures, all samples were tested at each temperature according to DIN EN ISO 844 standards. According to this standard, the variance for the compression modulus is set at 10%, with a 95% repeatability limit of 25%. We tested at least 3 samples for each density and temperature, for a total of 72 samples. Additionally, to assess the recovery effect, unloading steps were conducted at the same testing speeds.
To ensure that ambient temperature was identical to sample temperature, a dummy sample with the same density was used. A temperature sensor was placed in this dummy sample. Both samples were cooled/heated in the same thermal chamber. When the dummy sample with the same density reached the desired test temperature in the range of ± 2 °C, the test was started. Compression curves were analyzed using the open source Python script by Albuquerque et al. (2023). The methodology for determining the different compression properties is detailed in the cited publication. In essence, the elastic stress is determined at the intersection with a parallel shift by 0.02% from the linear elastic region. The densification strain is identified by the maximum energy absorption efficiency, and the energy absorption is calculated as the area under the compression curve up to the densification strain (Albuquerque et al. 2023).
Results and discussion
Morphology

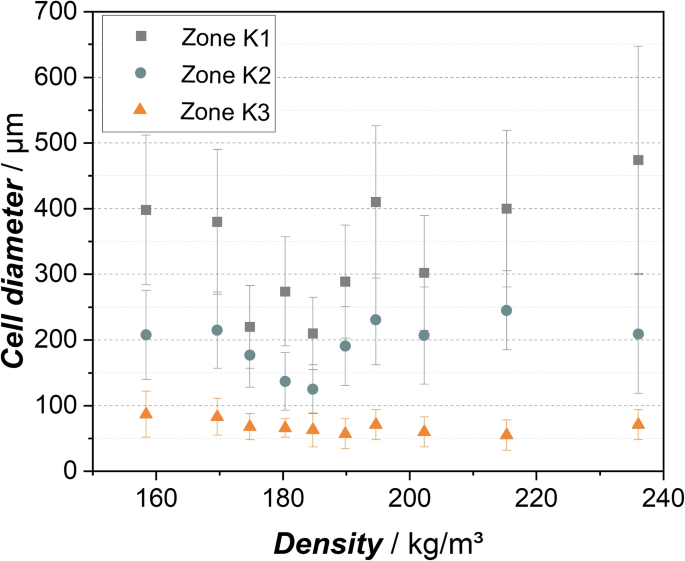

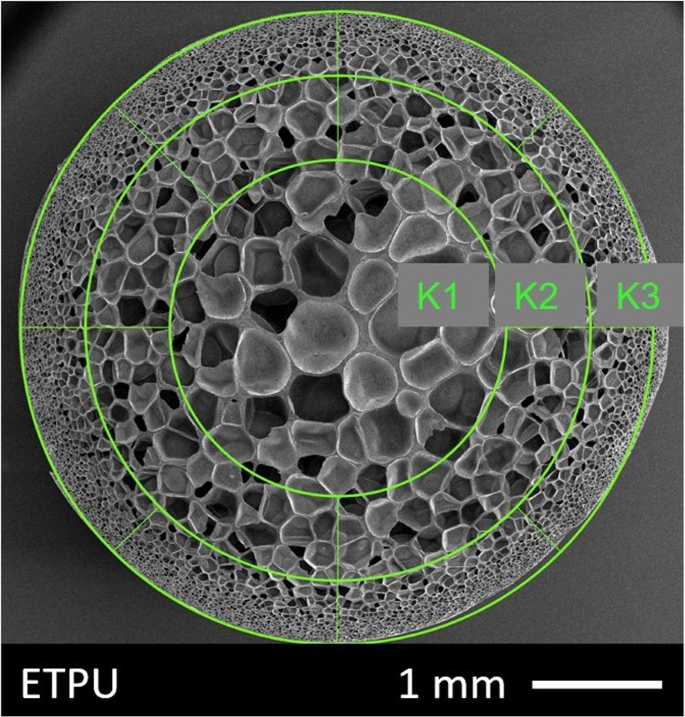

The morphology and density of the beads were analyzed. The mean density of the analyzed beads is 192 ± 19 kg/m3. The beads exhibit an ellipsoidal shape with an average principal axis of 9.8 ± 0.4 mm and an average minor axis of 5.9 ± 0.2 mm. To assess the impact of bead density, the average cell diameter of three zones was examined. The results, depicted in Fig. 4, do not show a clear dependency on density. The observation of decreasing cell sizes closer to the bead wall, as shown in Fig. 2, is validated by the measurements. For instance, a bead with a density of 194 kg/m3 exhibits average cell diameters of 410 μm in zone K1, 231 μm in zone K2, and 71 μm in zone K3. This heterogeneous morphology, as discussed in the introduction, strongly influences single bead deformation (Singaravelu et al. 2021).
Thermal analyis

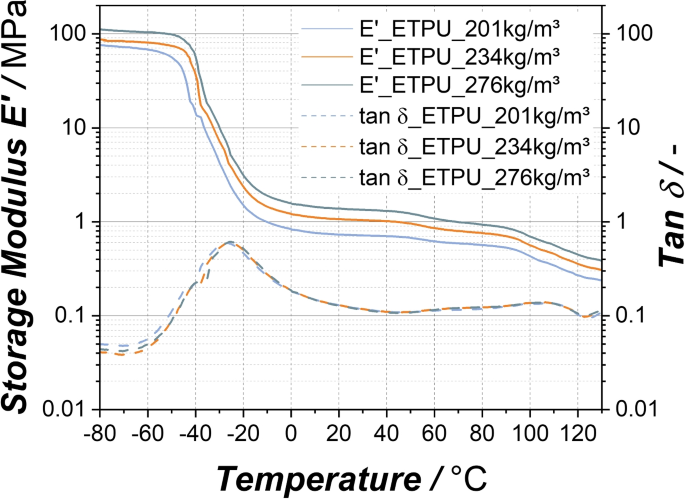

Figure 5 shows the DMTA results. All densities exhibit a similar pattern, starting with high values that decrease to a plateau before gradually declining further. The storage modulus is consistently higher with increasing density throughout the entire temperature range. The glass transition temperature, as charactarized by the maximum loss factor, occurs around − 25 °C. Below this temperature the material is in a glassy state and starts to soften at around − 45 °C. Following the transition phase, the material enters a rubbery plateau, spanning from approximately 0 °C to 50 °C. Beyond this range, up to around 90 °C, the slope increases as the material enters the rubber flow phase (Sircar et al. 1999).
Deformation behavior

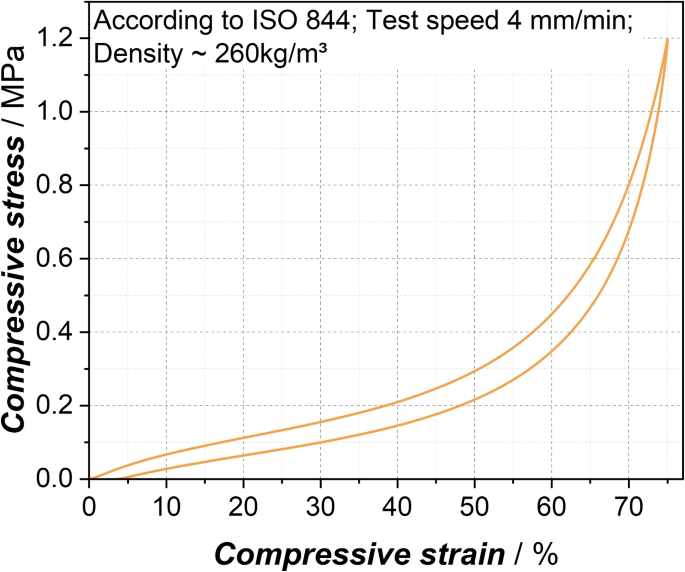

The deformation behavior of foams typically includes three distinct regions: the linear-elastic region, the plateau region, and the densification region, as delineated by Ashby (2006). Gibson et al. classify foams into brittle, plastic-elastic, and elastic categories based on the characteristics of the compressive stress-strain curve (Gibson and Ashby 2014). In Fig. 6, an exemplary compressive stress-strain curve for ETPU with a density of 260 kg/m3 is presented, demonstrating elastic behavior. Using the analytical approach of Albuquerque et al., the regions are computable (Albuquerque et al. 2023): the linear-elastic region extends up to 4.2%, the plateau spans from 4.2 to 55%, and densification occurs beyond 55% up to the tested 75%. The transition from the linear to the plateau region is gradual and smooth, with the slope-indicative of material stiffness-remaining nearly constant up to the onset of densification. This consistency is crucial for uniform material response throughout a wide deformation range.
During unloading, the material’s elasticity is evident, as it only retains about 4% residual strain at the end of the test, utilizing the same testing speed. ETPU can undergo substantial deformation with relatively low stress, a notable characteristic compared to other bead foams like EPP of similar density (Brütting et al. 2023). The compressive stress-strain curves of ETPU create a hysteresis loop, where the area between the loading and unloading curves represents the energy dissipated during deformation. The energy retained in the material, as indicated by the area under the unloading curve, exceeds the energy dissipated during deformation (Lazan 1968). This pattern suggests that ETPU has a high rebound capacity under standard conditions.

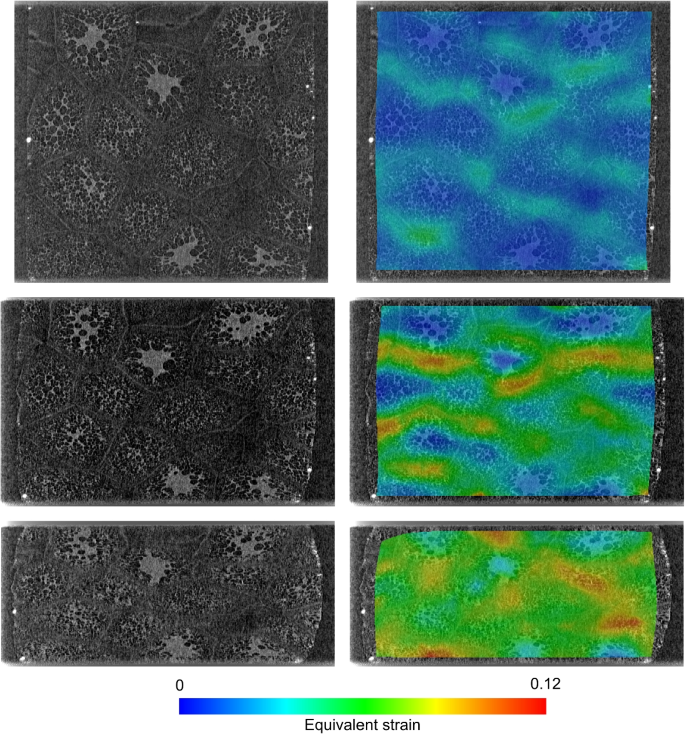

Visualization of ETPU deformation behavior: The left side shows X-ray CT slices along the compression direction, while the right side shows corresponding slices through the 3D strain maps. From top to bottom, the images sequentially illustrate the linear region (3–5% compression), the plateau region (30–35% compression), and the onset of densification (55–60% compression) in the foam
To further investigate the deformation strains resulting from compressive forces in the ETPU foam, we conducted 3D strain mapping. The deformation ranges were selected at the transition from the linear to the plateau region, the plateau region and the start of the densification. The results of these trials are visualized in Fig. 7. It is evident that the primary deformation at very small strains occurs primarily at areas around the fusion boundaries of the beads. This suggests that mainly the small cells of zone K3 are deformed (compare Fig. 2). Plotting the equivalent strain against the sphere radius, as shown in Fig. 8, confirms the assumption that the deformation of smaller cells seems greater than that of larger cells.
Between 30 and 35% compression, the deformation of the cells around the fusion boundaries of the beads becomes even more pronounced, making the multiscale structure visible. Finally, at deformations between 55 and 60% compression, there is a noticeable uniform deformation observed throughout the entire sample.
These findings can guide the design of the cellular structure of ETPU foam. To enhance elasticity at smaller deformations, a heterogeneous structure may be beneficial, featuring smaller cells near the bead walls and larger cells with thicker struts in the center. Conversely, a more uniform structure throughout the beads might help in achieving consistent deformation, reducing the likelihood of weak spots. However, to validate this further, tests with different foam structures are necessary.
Mechanical properties
Results shown in Fig. 7 suggest varying deformation mechanisms depending on the load. ETPU typically experiences greater deformations in its practical applications compared to those observed in DMTA tests (Allen et al. 2020). Consequently, we will discuss the effects of temperature on ETPU deformations up to 75% in the following sections.
Visualization of the influence of temperature in a representative stress-strain curves, in b the compression modulus, in c the elastic stress, in d the analyzed onset of densification strain, in e the compression stress at 50% deformation, and in f the energy absorption of the material up to densification

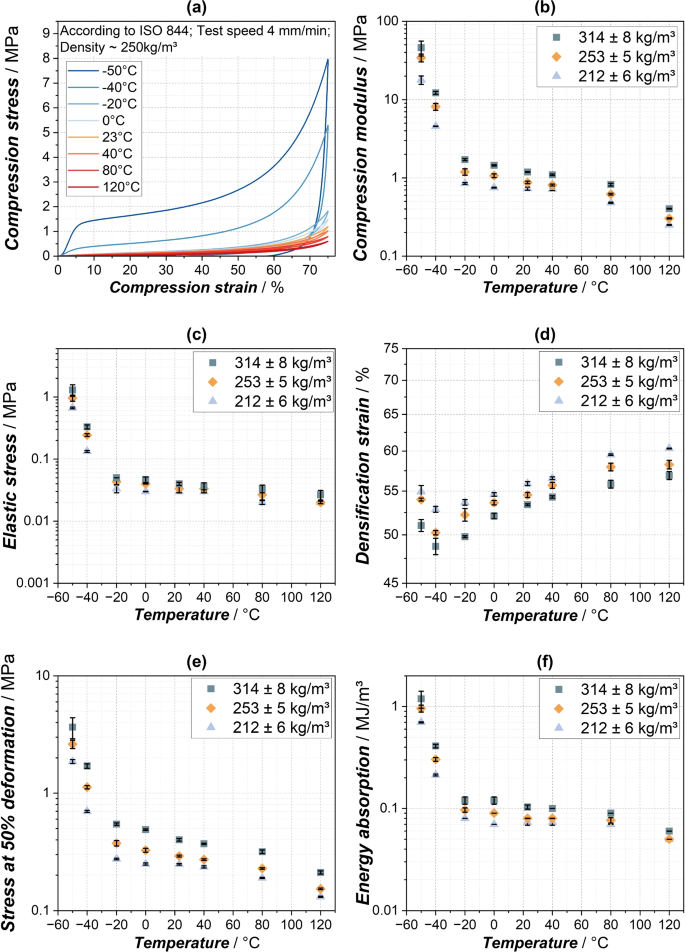

The compression test results, depicted in Fig. 9, detail how temperature influences the mechanical behavior of ETPU.
The stress-strain curves in Fig. 9a clearly show that temperature impacts all stages of ETPU deformation. The most significant alterations are observed in tests conducted at temperatures below − 25 °C and above. This is due to ETPU transitioning from a glassy state at temperatures below its glass transition temperature (\(T_g\) = − 25 °C, compare Fig. 5) to a rubbery state above it (Sircar et al. 1999).
The temperature-dependent compression properties for ETPU foams of three different densities are presented in Fig. 9b–f. The data indicates that higher density leads to increased compression modulus, elastic stress, stress at 50% deformation, and energy absorption, while densification strain decreases with increasing density.
The compression modulus in Fig. 9b follows a similar pattern as the DMA curve in Fig. 5, with a marked decrease from − 50 to − 20 °C, and a more gradual decrease from − 20 to 40 °C. For instance, an ETPU foam with a density of 250 kg/m3 exhibits a compression modulus of 1.19 MPa at − 20 °C, 0.87 MPa at 23 °C, and 0.82 MPa at 40 °C. A significant reduction in stiffness is observed at temperatures above 80 °C, demonstrating that ETPU becomes less rigid with increasing temperature.
The elastic stress of ETPU, indicating the onset of the plateau region, rises at lower temperatures but remains relatively constant from − 20 to 40 °C, with a slight decrease observed at higher temperatures.
The densification strain, marking the start of densification, is lowest at − 40 °C and increases progressively with temperature. For example, ETPU foam with a density of 253 kg/m3 has a densification strain of 55% at − 50 °C, 51% at − 40 °C, increasing to 55% at 23 °C, and 58% at 80 °C. Above 80 °C, the increase in densification strain becomes less marked.
The stress required for 50% deformation initially drops sharply below − 25 °C, then stabilizes between − 20 and 40 °C, and decreases more noticeably from 80 to 120 °C, indicating the material softens with temperature.
Energy absorption in ETPU foam is highest at lower temperatures, attributed to its brittleness in a glassy state which could lead to a higher energy dissipation on impact. Above its glass transition temperature, ETPU’s elasticity allows to return energy, increasing its versatility. Consequently, ETPU could be an ideal protective layer for tanks containing gases or liquids below − 50 °C. Since the material provides excellent protection against vibrations above − 20 °C without deforming permanently. In the event of gas leaks causing ETPU to freeze, the amount of energy that ETPU can absorb increases.
Comparing ETPU’s (253 kg/m3) temperature-dependent recovery behavior: a Percentage of height recovery post-compression, measured immediately and 72 h after testing. b Compression modulus, and c energy absorption on the second compression at 23 °C, each relative to the properties of samples initially tested at 23 °C
To assess how temperature impacts recovery, we examined the change in sample height immediately after testing and 24 h after testing at room temperature, as depicted in Fig. 10a. Directly after testing, notable deformation is observed, with samples at − 50 °C reaching only 42% of their original height, while those at − 40 °C reach 65%. This suggests a reduction in elasticity at these temperatures, hindering the samples from promptly returning to their original shape with repeated deformations. In the temperature range from − 20 to 60 °C, samples rapidly recover close to 100% of their original height. At higher test temperatures, such as 80 °C and 120 °C, the recovery percentages are 94% and 90%, respectively. The material starts to melt at these temperatures, as evidenced by the increase of the loss factor tan \(\delta\) from around 50 °C onwards, as shown in Fig. 5.
Allowing the samples to rest at laboratory conditions after testing, reveals that the original height is restored for temperatures ranging from − 50 to 60 °C. Permanent height changes become apparent at higher test temperatures, with 3% at 80 °C and 7% at 120 °C.
The recovery behavior was further examined by analyzing the compression properties of all test series with a second load to 75% deformation at 23 °C, after a 72-h recovery period. The results of this were compared to a sample being compressed only once to 75% deformation at 23 °C. As shown in Fig. 10b, the compression modulus matches or exceeds the initial stiffness. Compressing ETPU to 75% twice at 23 °C does not alter its stiffness, demonstrating its strong elastic behavior. Surprisingly, the material’s deformation does not appear to be affected by the test temperature of the initial load. Samples tested at − 50 °C achieve 97% of the stiffness compared to those subjected to the first load at 23 °C. Some samples even exhibit increased stiffness, possibly influenced by the initial load. However, there is no discernible trend correlating with the temperature of the initial load.
Similarly, the energy absorption in Fig. 10c remains consistent with the original values at 23 °C. This suggests that neither property is significantly influenced by initial testing, regardless of the initial temperature. Observing an increased energy absorption at 23 °C suggests a small loss in elasticity during the initial load. Further exploration through dynamic cyclic loading at larger deformations and various temperatures is needed to understand this phenomenon better. However this investigation shows clearly the material’s potential to maintain similar shape and compression properties even after being compressed to 75% at different temperatures.
Conclusions
In this study, we investigated the influence of temperature on the compression properties of expanded thermoplastic polyurethane (ETPU) across a wide temperature range (− 50 °C to 120 °C). Our findings provide a comprehensive understanding of ETPU’s mechanical performance under various thermal conditions, demonstrating the material’s significant versatility and resilience.
DMTA measurements show temperature dependent behavior at different densities. The stiffness decreases drastically at the glass transition temperature (approximately − 25 °C), showing a plateau up to 80 °C before further decreasing.
In-situ CT measurements and 3D strain mapping at different compression levels allow to analyze deformation mechanisms. Depending on the compression level the cellular structure is affected differently. Initially, the deformation is concentrated at the bead borders, with more uniform deformation across the bead walls as the compression increases. These findings unveil paths to tailor the mechanical properties of ETPU by adjusting its cellular structure.
In addition we conducted quasi-static compression tests on ETPU with three different densities up to the high deformation of 75% at temperatures ranging from − 50 to 120 °C. The results show a plateau between − 20 and 60 °C, where the compression modulus, elastic stress and energy absorption decrease very slowly. Density affects performance across all temperatures, with higher density samples showing higher compression modulus, elastic stress, and energy absorption capabilities.
ETPU impressively recovers from compression at temperatures ranging from − 50 to 60 °C. Following a 72-h period at room temperature, the material shows minimal residual deformation. Subsequent compression tests at room temperature reveal that both strength and flexibility are unaffected. Notably, both the compression modulus and energy absorption either match or exceed their initial values, indicating ETPU’s resilience and ability to maintain its mechanical properties even after being compressed to 75%.
To better understand ETPU’s durability over time, future research should investigate its response to cyclic dynamic loading at high deformations across various temperature conditions.
